UDEM InternationalM.2024.206.C98909
Machinery Directive 2006/42/EC.
Valid through 2029-04-07
View Full CertificateElectric turnbuckle wrench
Model / SDX-6ET
Electric Turnbuckle Bolt Wrench
The SDX-6ET is an electric fastening tool designed for tightening and loosening open-body turnbuckles and rigging screws in construction, infrastructure and industrial maintenance applications.
Product Overview
Electric fastening for turnbuckle bolts
Designed for open-body turnbuckles and rigging screws, the SDX-6ET supports tightening and loosening work across its listed construction, infrastructure and industrial maintenance applications.
Who it is for
Target Customers
- Power transmission construction and maintenance organizations
- Bridge construction and maintenance companies
- Steel structure installation companies
- Railway and rail transit maintenance departments
- Port and terminal operators
- Construction engineering companies
- Wind power installation companies
- Mining, metallurgy and petrochemical equipment maintenance organizations
Application fit
Application Areas
Power transmission construction and maintenance
Bridge construction and maintenance
Steel structure installation
Rail transit maintenance
Ports and terminals
Construction engineering
Wind power installation
Mining, metallurgy and chemical industry maintenance
Shipbuilding
Cable tensioning and securing
Product functions
Key Features
Core functions and operating features of the SDX-6ET.
01
900 W high-power brushless motor
02
Variable speed control
03
Forward and reverse control
04
Battery and corded dual-power operation
05
Integrated cooling system
06
LED work light
07
Digital torque display
Technical data
Technical Specifications
Key specifications for the SDX-6ET.
| Maximum torque | 800 N·m |
|---|---|
| Maximum speed | 40 r/min |
| Power | 900 W |
| Voltage | 21V / 110V / 230V |
| Clamping range | 10–53 mm |
| Head width | 150 mm |
| Power supply | Battery / corded dual-power operation |
| Net weight | 6.25 kg, excluding battery |

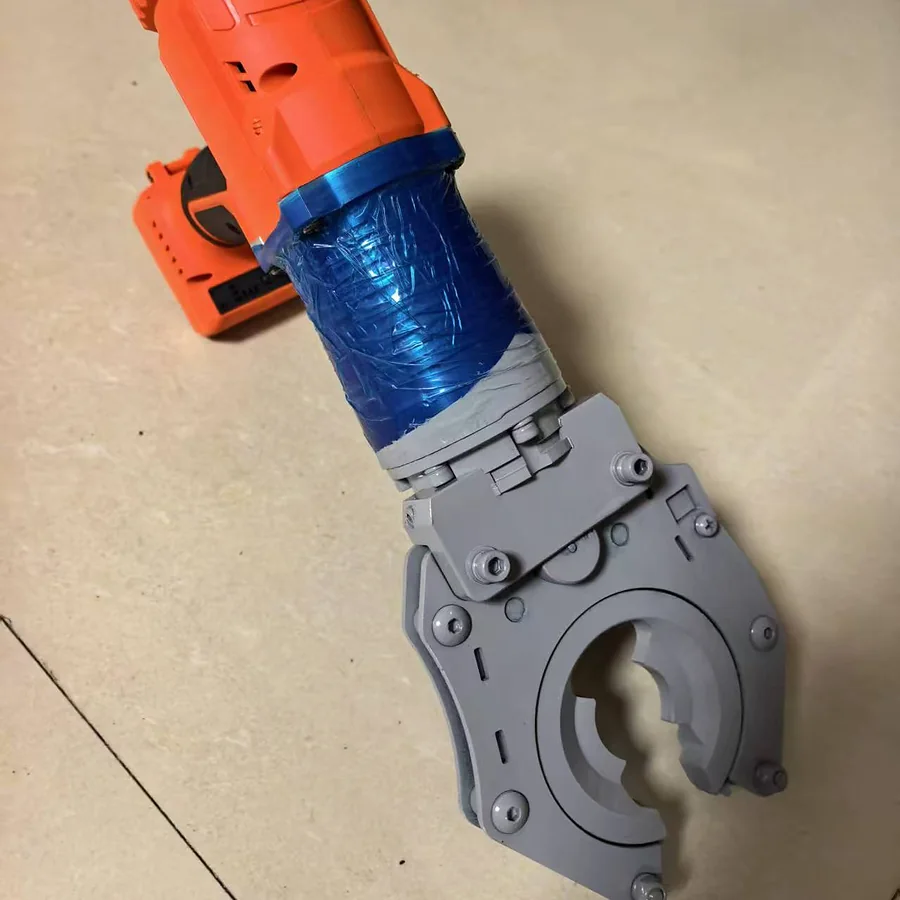

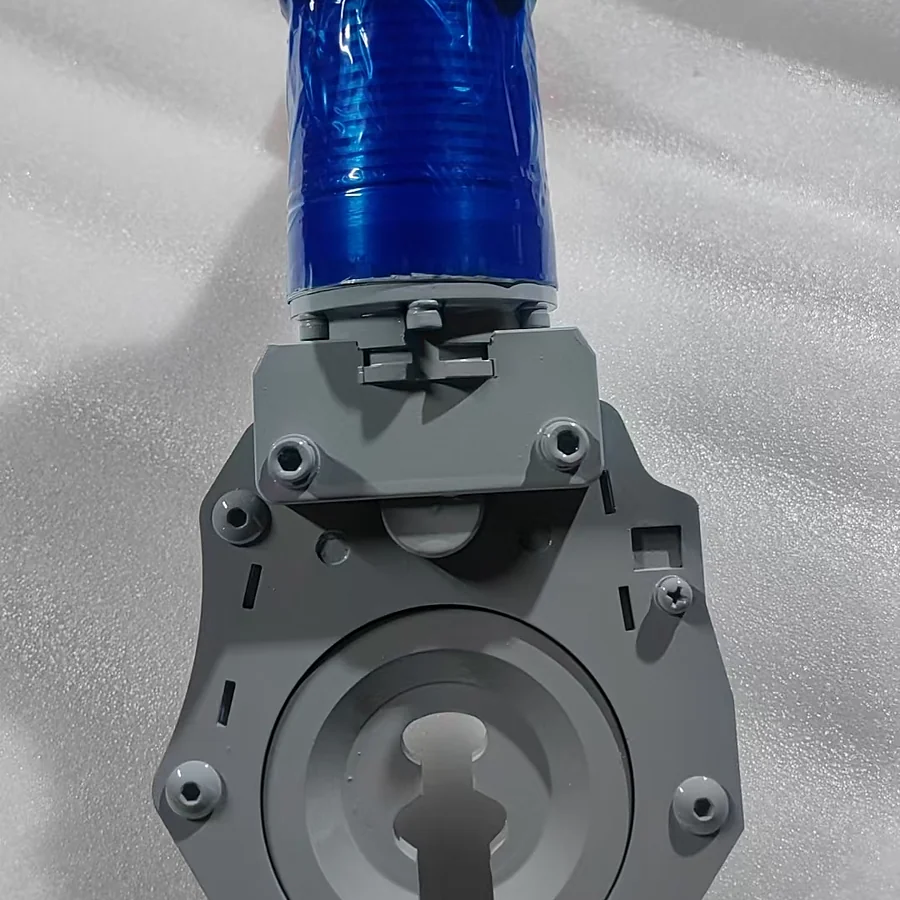

Product media
Product Details

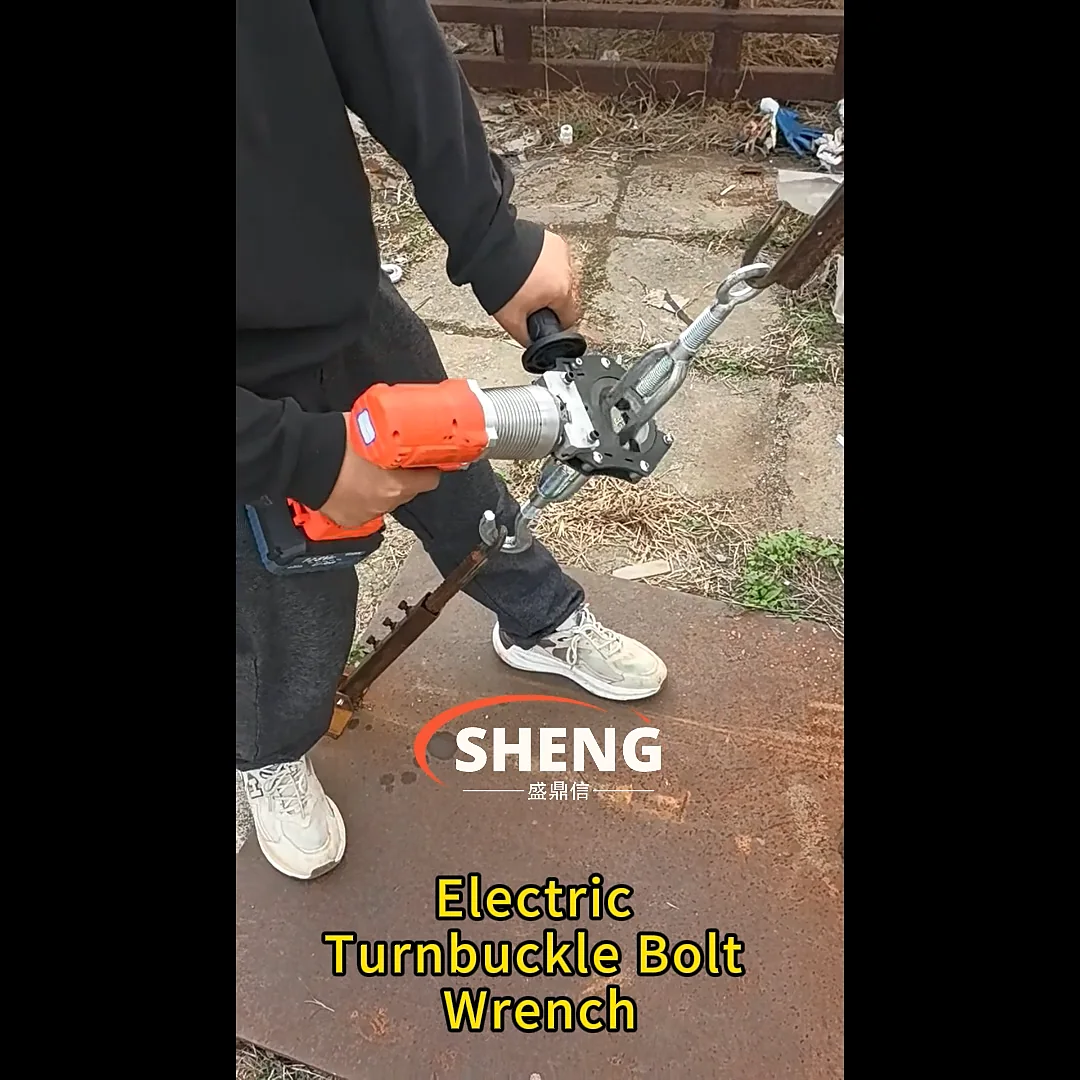

Product video
See the SDX-6ET in Operation
Product document
Brochure & Product Information
SDX Electric Tools Brochure · PDF · 18.2 MB
Multi-product brochure including the Electric Turnbuckle Wrench series.
OEM / ODM
OEM & ODM Support
SDX supports design, product selection, sampling and branded production across the OEM/ODM process.
Explore Customization SupportCompliance information
CE Certification Details
UDEM International
UDEM InternationalM.2024.206.C98900
Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Valid through 2029-04-07
View Full CertificateView CE standards
EN ISO 12100:2010, EN 62841-1:2015+A11:2022, EN 62841-2-2:2014, EN 60204-1:2018, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021
Related applications
Where the SDX-6ET Can Be Used
How to choose
Share the Task Before Selecting a Tool
Share the turnbuckle type, required clamping range, available power supply and working environment so our team can discuss product selection for your application.
Product FAQ
Direct Answers for Product Evaluation
What is the SDX-6ET?
The SDX-6ET is an Electric Turnbuckle Bolt Wrench used to tighten and loosen open-body turnbuckles and rigging screws.
What clamping range does the SDX-6ET support?
The clamping range is 10–53 mm, with a 150 mm head width.
Does the SDX-6ET support different power options?
Yes. Available options are 21V, 110V and 230V, with battery and corded dual-power operation.
Does SDX support OEM and ODM projects?
Yes. SDX supports design, product selection, sampling and branded production. Contact our team to discuss project requirements.
Product inquiry
Discuss Your Application with SDX
Contact our sales team for current pricing and product information.
